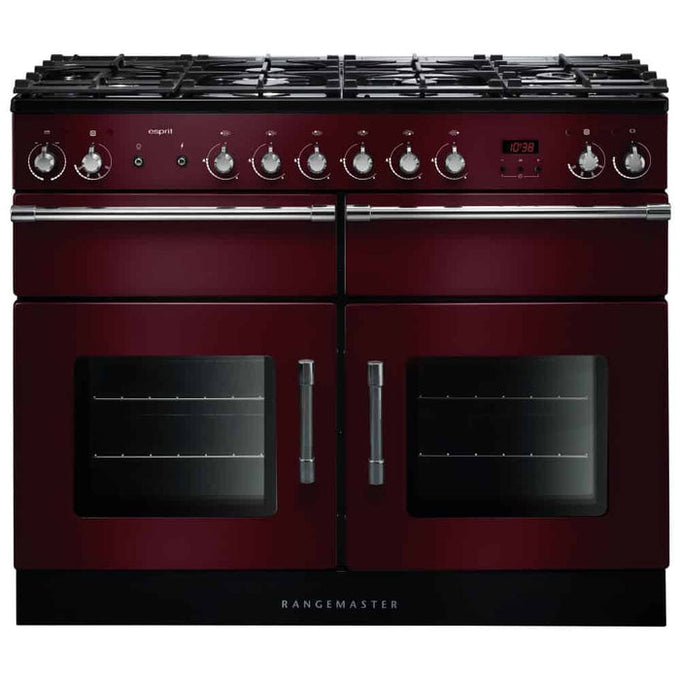

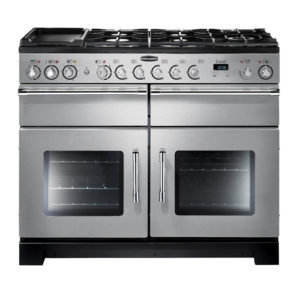

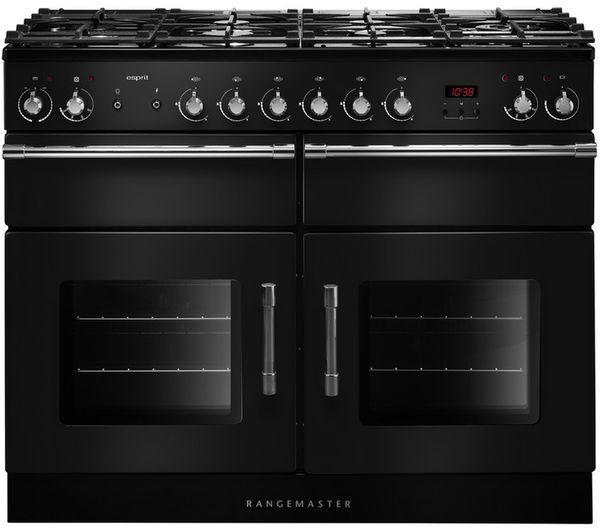

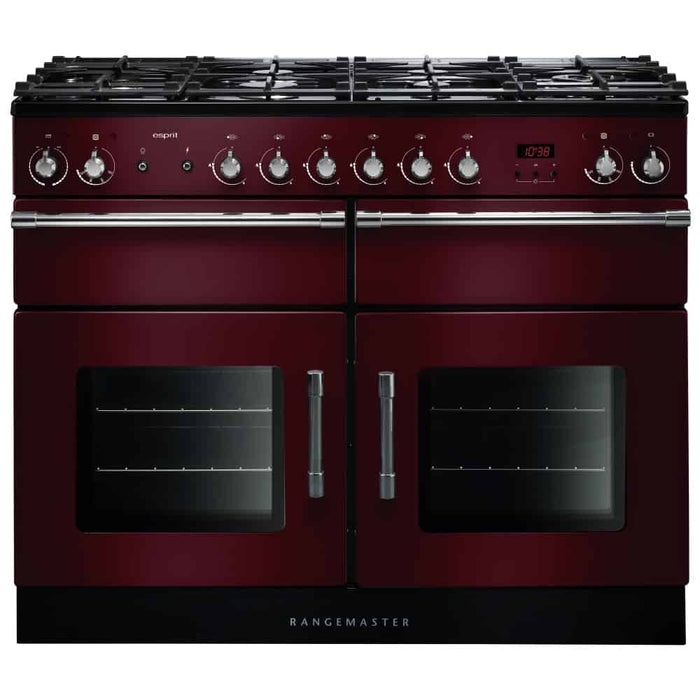

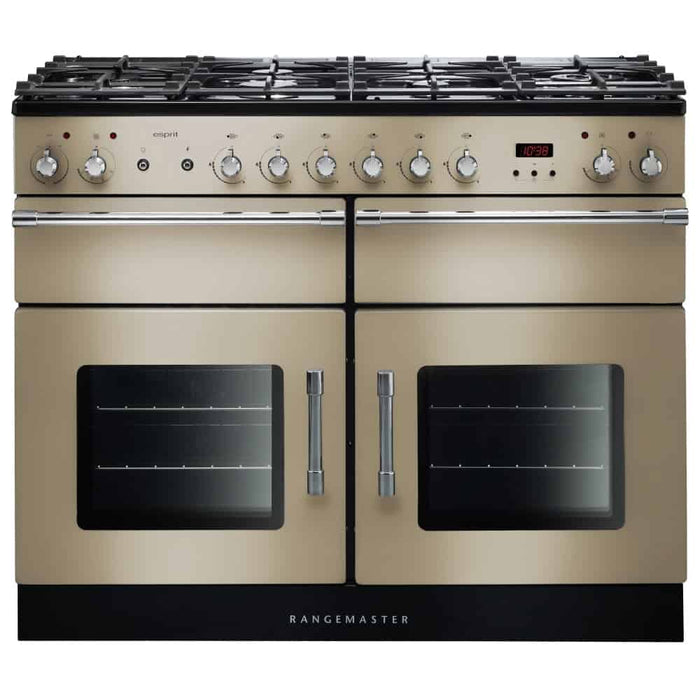

Rangemaster ESPRIT 110 Dual Fuel Range Cooker

• Three ovens with separate grill
• Includes multifunction and slow ovens
• 90.5 x 109.2 x 60.4 cm (H x W x D)
• Width: 110 cm
• Three electric ovens / Separate electric grill
• 6-burner gas hob / wok burner

Width (slider)

109

Capacity

150 - 199 litres

Width

110 cm

Cleaning

Catalytic liners

Number of Ovens

Triple

Fuel Type

Dual fuel

Installation (string list)

Professional electrical installation required

Main Oven Function

Fan

Colour

Black

Maximum Weight

132.2 kg

Hob Type

Gas

Energy Rating

A

Manufacturer Guarantee

2 Years

Overview

Type

Freestanding dual fuel range cooker

Colour

Black & chrome

Fuel

Dual fuel

LPG option

Yes, kit available

Hob type

Gas

Number of burners

6

Number of ovens

3

Oven type

- Main: Electric
- Second: Electric
- Third: Electric

Number of grills

1

Grill

Grill type

Separate full-width grill

Grill capacity

21 litres

Grill cleaning

Enamel coating

Grill features

- Pan and handle included
- Glide-out rails

installation

Minimum distance required

- 650 mm above
- 5 mm on the sides and in the back

Gas & dual fuel installation

Please note this product should be installed by a qualified Gas Safe engineer, such as one of our Tech experts (available in the UK only).

Electrical installation

This product requires hardwiring to a 32 Amp fuse and should be installed by a qualified installer, such as one of our Tech experts.

Power supply

32 Amp (Requires hardwiring to a dedicated cooker circuit)

Electrical power rating

14.8 kW

Cooker legs

- 200 mm per leg
- Telescopic legs

General

Box contents

Rangemaster Esprit ESP110DFFBL/C 110 Dual Fuel Range Cooker

Dimensions

905-930 x 1092 x 604 mm (H x W x D)

Recess dimensions

1555-1580 x 1102 x 609 mm (H x W x D)

Boxed dimensions

1020 x 1205 x 730 mm (H x W x D)

Weight

132.2 kg

Boxed weight

138 kg

Manufacturer’s guarantee

2 years

Hob

Wok burner

Yes

Pan supports

Cast iron

Ignition system

Manual

Flame Supervision Device (FSD)

Yes

Ovens

Oven type

- Main: fan
- Second: fan
- Third: slow cooking

Functions

Fan

Size

- Main: large
- Second: large
- Third: small

Capacity

- Main: 79 litres
- Second: 79 litres
- Third: 21 litres

Main oven shelves

- 2 shelves
- 7 shelf positions

Second oven shelves

- 2 shelves
- 7 shelf positions

Third oven shelves

- 1 shelves
- 1 shelf positions

Energy rating

- Main: A
- Second: A

Energy consumption

- Main: 0.83 kWh
- Second: 0.83 kWh

Viewing window

- Main: triple glazed
- Second: triple glazed

Door opening style

- Main: Left-hinged
- Second: Right-hinged
- Third: Drop down

Interior light

Yes

Oven cleaning

- Main: catalytic
- Second: catalytic
- Third: enamel coating

Controls

Timer type

- Programmable
- Countdown timer

Display type

LED display

Control type

Dials
