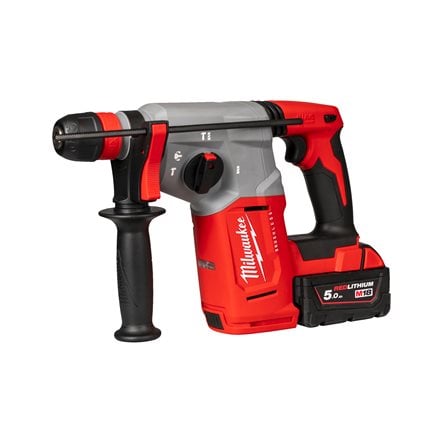

Milwaukee M18BLHX-501X M18 Brushless 26mm SDS-Plus Rotary Hammer Drill Kit (1 x 5.0Ah)
The Milwaukee M18BLHX-501X is a powerful and versatile cordless 26mm SDS-Plus rotary hammer drill, engineered for professional users who demand high performance on site. Featuring a high-efficiency brushless motor, 2.3 Joules of impact energy, and four operating modes, it is ideal for drilling and chiselling in concrete, masonry, wood, and steel. Supplied with a 5.0Ah REDLITHIUM™ battery, M12-18 FC Fast Charger, and heavy-duty carry case, this kit is ready to tackle demanding applications straight out of the box.
Key Features
- High-Performance Brushless Motor – Delivers increased efficiency, longer runtime, and extended motor life.
- 2.3 Joules of Impact Energy (EPTA) – Provides fast, effective drilling and chiselling performance.
- 4-Mode Operation – Includes rotary hammer, hammer only, rotation only, and Variolock chisel positioning for maximum versatility.
- FIXTEC™ Chuck System – Quickly switch between the SDS-Plus chuck and the included 13mm keyless metal chuck without tools.
- All-Metal Gear Case – Robust construction for enhanced durability and longer service life.
- REDLINK™ Intelligence – Advanced electronic protection optimises tool and battery performance while preventing overload.
- REDLITHIUM™ Battery Technology – Delivers longer runtime, greater durability, and consistent power.
- Anti-Vibration Side Handle – Improves comfort and reduces user fatigue during prolonged use.
- Dust Extractor Compatible – Compatible with the Milwaukee M18 CDEX dust extraction system.
- Part of the Milwaukee M18™ System – Compatible with all Milwaukee M18 batteries.
Specifications
| Feature | Details |
|---|---|
| Brand | Milwaukee |
| Model | M18BLHX-501X |
| Product Type | Cordless SDS-Plus Rotary Hammer Drill |
| Battery Platform | Milwaukee M18™ |
| Motor Type | Brushless |
| Impact Energy (EPTA) | 2.3 Joules |
| No Load Speed | 0–1,400 rpm |
| Impact Rate | 0–4,900 bpm |
| Max Drilling Capacity – Concrete | 26 mm |
| Max Drilling Capacity – Steel | 13 mm |
| Max Drilling Capacity – Wood | 26 mm |
| Chuck Type | SDS-Plus with FIXTEC™ Keyless Chuck System |
| Operating Modes | 4 (Rotary Hammer, Hammer Only, Rotation Only, Variolock) |
| Vibration – Drilling | 8.9 m/s² |
| Vibration – Chiselling | 9.5 m/s² |
| Compatible Dust Extraction | Milwaukee M18 CDEX |
| Approx. Weight (with 5.0Ah Battery) | Approx. 3.5 kg |

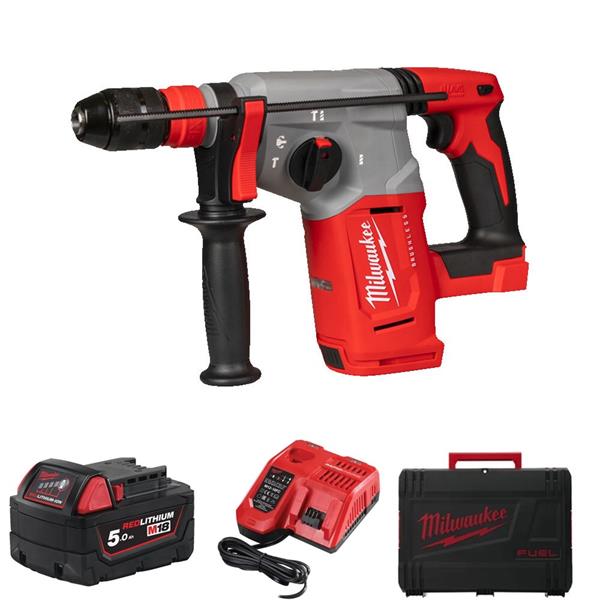

What's Included
- Milwaukee M18BLHX Brushless SDS-Plus Rotary Hammer Drill
- 1 x 5.0Ah REDLITHIUM™ Li-Ion Battery
- M12-18 FC Fast Charger
- FIXTEC™ 13mm Keyless Metal Chuck
- Heavy-Duty Carry Case
Why Shop with Keans Claremorris?
When you shop with Keans Claremorris, you're choosing a trusted Irish retailer with decades of experience supplying professional tools and equipment. We offer competitive prices, expert advice, outstanding customer service, and fast nationwide delivery, ensuring you have the right tools for every job.
The Milwaukee M18BLHX-501X combines cordless freedom, brushless efficiency, and professional-grade SDS-Plus performance, making it an excellent choice for drilling, anchoring, and chiselling applications on site or around the home.
