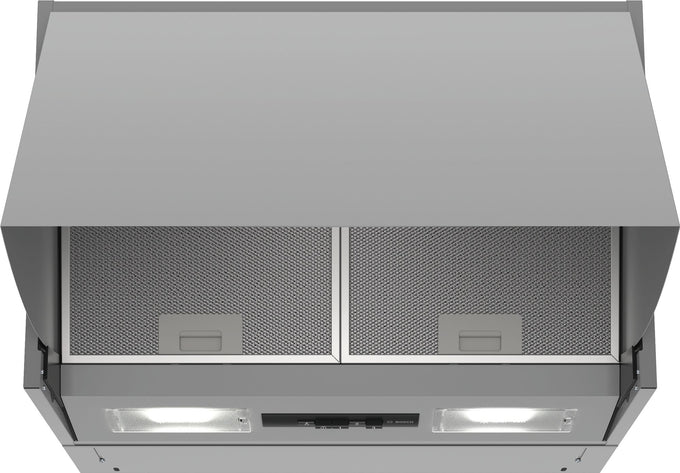

Metal grease filter
Ducted and recirculation hoods require metal grease filters to filter grease and other solid particles out of the extracted air. To keep these filters operating at maximum efficiency, clean them about once a month either by hand or in the dishwasher.
BrandBoschModel NumberDEM66AC00BEAN Number4242005041121Warranty2 Years WarrantyDimensions Unitcm
Tooltip
ColourSilverWeight12.000000Weight UnitkgHood TypeIntegrated
Technical details
- Product series: Serie | 2
- Main colour of product: silver
- Colour body: silver
- Enter the material of the body: Lacquered
- Typology: Built-in/Built-under
- Type of control: Mechanical
- Construction type: Built-in
- Installation type: Wall-mounted
- Type of control settings: None
- Motor location: Integrated motor in hood body
- Operating Mode: Convertible
- Electrical connection rating: 256 W
- Current: 10
- Voltage: 220-240 V
- Frequency: 50; 60 Hz
- Approval certificates: CE
- Length of electrical supply cord: 150 cm
- Plug type: GB plug
- Width of the product: 599 mm
- Depth of the product: 271 mm
- Height of the packed product: 510 mm
- Width of the packed product: 670 mm
- Depth of the packed product: 330 mm
- Net weight: 11.9 kg
- Gross weight: 13.3 kg
- Maximum chimney height in mm (exhaust.): 402 mm
- Minimum chimney height in mm (exhaust.): 402 mm
- Maximum chimney height in mm (recirc.): 402 mm
- Minimum chimney height in mm (recirc.): 402 mm
- Application of EU Energy Label Regulation: Yes
- Energy efficiency class (2010/30/EU): B
- Total annual energy consumption: 68.4 kWh/year
- Fluid Dynamic Efficiency (2010/30/EU): 25.4
- Fluid Dynamic Efficiency class (2010/30/EU): B
- Lighting efficiency (2010/30/EU): 29.0 lux/Watt
- Lighting efficiency class (2010/30/EU): A
- Grease filtering efficiency (2010/30/EU): 76.0 %
- Grease filtering efficiency class (2010/30/EU): C
- Maximum Air flow: 625 m³/h
- Minimum air flow: 256.0 m³/h
- Air flow boost (2010/30/EU): 0.0 m³/h
- Sound power at max. speed (2010/30/EU): 70 dB
- Sound power at min. speed (2010/30/EU): 49 dB
- Noise level (dB re 1 pW): 70 dB re 1 pW
- Energy Smart appliance, able to optimise consumption pattern (2017/1369/EU): No
- Capability of wireless communication: No
- SIM card slot available: No
- Kind of remote access: No, only direct access
- Possibility of remote upgrade: No
- Possibility of remote update for maintenance: No
- Possibility of Voice Control: No

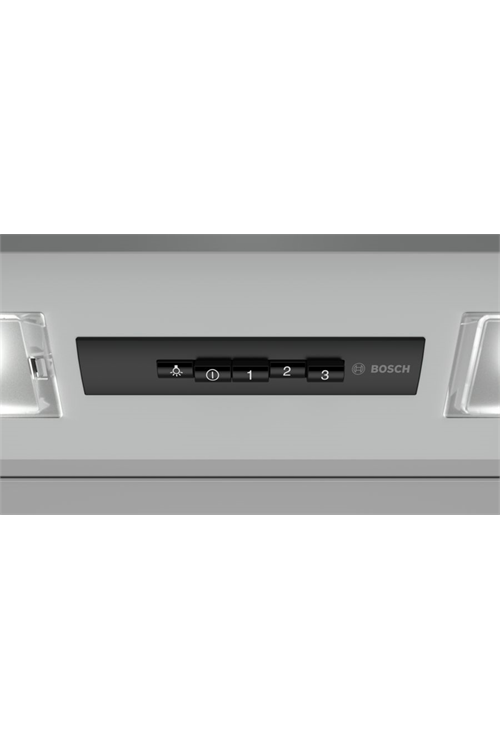

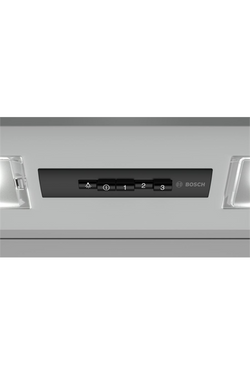

- Type of manual control devices: Push buttons
- Remote control: No
- Number of motors: 1
- Total power of the motors: 250 W
- Maximum output air extraction: 625 m³/h
- Maximum output recirculating air: 416 m³/h
- Light Control Type: On/Off

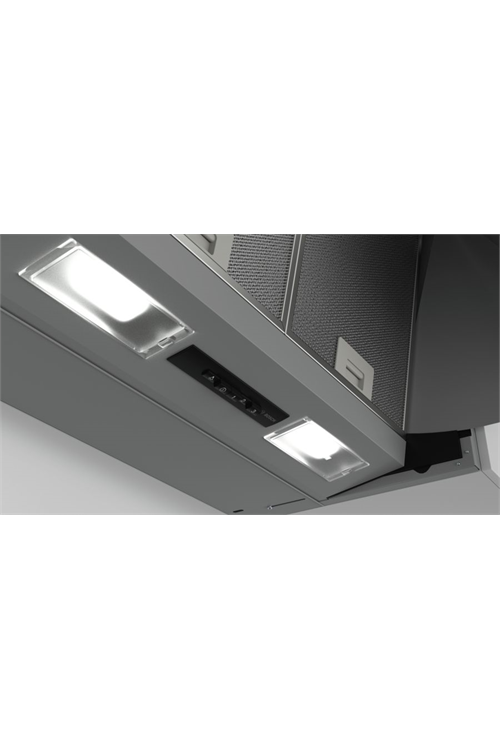

- Number of lights: 2
- Total power of the lamps: 6 W
- Total luminance: 188 lux
- Grease filter material: Washable aluminium
- Diameter of air outlet: 150 / 120 mm
- No-return airflow flap: Yes
- Odour filter: No
- Number of speed settings; boost option availability: 3
