60cm Mesh Sat. Dish with Quad LNB for Sky & Free to Air
DB60L4
Pair With...
Learn more about your legal guarantee rights
Legal guarantee
Minimum two-year legal guarantee protection for goods sold in the European Union.
Consumers can claim their rights under the legal guarantee of conformity, for example if goods:
- do not match the description;
- do not function as intended.
Sellers are liable for any lack of conformity which existed when the goods were delivered, and which becomes apparent within the legal guarantee period. Sellers in such a situation are required to offer:
- free repair or free replacement;
- in some cases, a price reduction or full reimbursement.
Some countries have a longer legal guarantee period. For second-hand goods, a shorter period may apply, but not less than one year.
For more information on your rights in a specific country, scan the QR code below or ask the seller. europa.eu/youreurope/guarantees
What to do if you receive non-conforming goods:
- Contact the seller as soon as possible to report the issue;
- Provide proof of purchase, such as a receipt, invoice, or bank statement.
Sellers and producers may also offer commercial guarantees, which apply independently from the legal guarantee. For example, you may see this GARAN label representing a commercial guarantee of durability offered by the producer at no additional cost and covering the entire good.
The superior construction allows you to withstand harsh weather conditions while delivering a powerful signal strength.
 |
This satellite dish & Twin LNB are both designed with approved and certified materials to provide you with the most powerful signal strength. |
 |
This satellite dish is a Zone 2 - giving it a higher signal gain than zone 1 which allows for a better reception and exceptional performance. |
 |
Built and designed to withstand the harsh Irish weather, this satellite dish ensures a clear signal reception even during harsh weather environments. |
 |
You can arrange up to 2 standard or a single Sky+ boxes from a dish which allows you to cut costs and unnecessary time. This means up to 2 rooms can be fed from the Twin LNB. |
 |
This satellite dish is HD ready, allowing you the freedom to enjoy crystal clear video and superior audio once assembly is complete. |
 |
While installation of this satellite dish is not extremely demanding, it does take confidence. Instructions on installation are included with this purchase. |

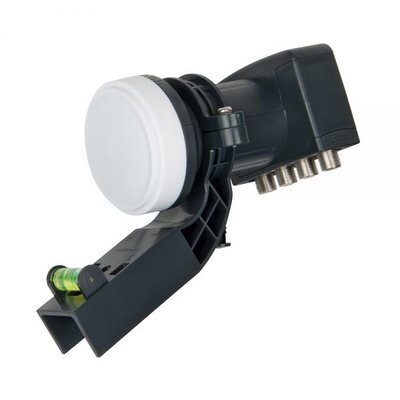

Quad LNB
- Input Frequency 10.7 ~ 12.75 GHz
Vertical: 290 ~ 2340 MHz
- Output frequency Horizontal: 290 ~ 2340 MHz
- L.O. frequencies 10.41 GHz
+/-0.5 MHz (max) @ Room Temp
- L.O. Stability +/-1 MHz (max) @ -40°C ~ +60
- L.O. Phase Noise -75dBc/Hz @ 10kHz (max.)
- Noise Figure 0.1 dB (typ.)
- Conversion Gain 50 dB (min) / 60 dB (max)
- Gain Flatness @ 26MHz /-0.5dB (typ.)
- Gain Variation 7dB (max.) @ full band
- Cross Polar Isolation 25 dB (typ.)
- Image Rejection 40 dB (min)
- Current Consumption 0.85W (max.) (70mA @ +12V D
- Power Voltage 9 - 19V DC
- Connector Type 75 female F-connector
- Output Spurious <-60dBm
- Operating Temp -40'C ~ +60'C
- RED Compliance EN 303 372-1

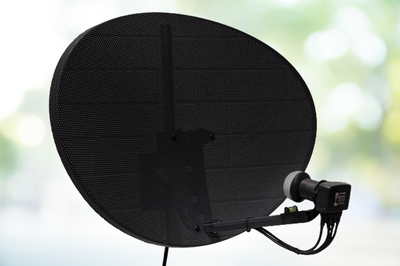

Satellite Dish
- Weatherproof: Yes
- Surface: Mesh
- Shape: Oval
- Indoor/Outdoor: Outdoor
- Included Brackets: Satellite Bracket, Elevation Bracket, LNB Feed Arm, L Tube, Wall Adapter and Fixing Kit
