This satellite dish & Twin LNB are both designed with approved and certified materials to provide you with the most powerful signal strength.
|
Outstanding Performance & Signal Gain
|
This satellite dish is a Zone 2 - giving it a higher signal gain than zone 1 which allows for a better reception and exceptional performance.
|
|
Built and designed to withstand the harsh Irish weather, this satellite dish ensures a clear signal reception even during harsh weather environments.
|
|
You can arrange up to 2 standard or a single Sky+ boxes from a dish which allows you to cut costs and unnecessary time. This means up to 2 rooms can be fed from the Twin LNB.
|
|
This satellite dish is HD ready, allowing you the freedom to enjoy crystal clear video and superior audio once assembly is complete.
|
Assembly Instructions Included
|
While installation of this satellite dish is not extremely demanding, it does take confidence. Instructions on installation are included with this purchase.
|

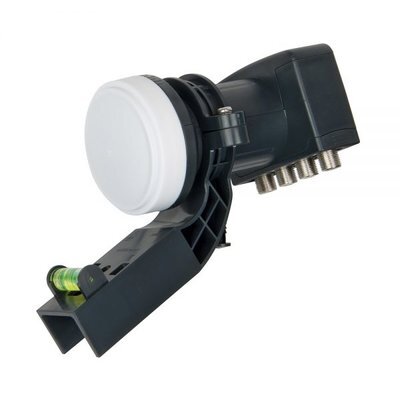

Quad LNB
-
Input Frequency 10.7 ~ 12.75 GHz
Vertical: 290 ~ 2340 MHz
-
Output frequency Horizontal: 290 ~ 2340 MHz
-
L.O. frequencies 10.41 GHz
+/-0.5 MHz (max) @ Room Temp
-
L.O. Stability +/-1 MHz (max) @ -40°C ~ +60
-50dBc/Hz @ 1kHz (max.)
-
L.O. Phase Noise -75dBc/Hz @ 10kHz (max.)
-100dBc/Hz @ 100kHz (max.)
-
Noise Figure 0.1 dB (typ.)
-
Conversion Gain 50 dB (min) / 60 dB (max)
-
Gain Flatness @ 26MHz /-0.5dB (typ.)
-
Gain Variation 7dB (max.) @ full band
-
Cross Polar Isolation 25 dB (typ.)
-
Image Rejection 40 dB (min)
-
Current Consumption 0.85W (max.) (70mA @ +12V D
-
Connector Type 75 female F-connector
-
Operating Temp -40'C ~ +60'C
-
RED Compliance EN 303 372-1

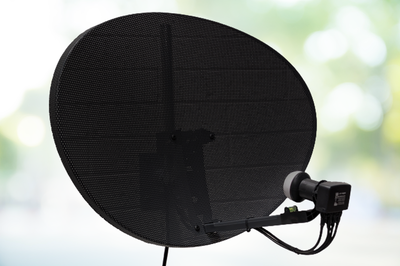

Satellite Dish
- Weatherproof: Yes
- Surface: Mesh
- Shape: Oval
- Indoor/Outdoor: Outdoor
- Included Brackets: Satellite Bracket, Elevation Bracket, LNB Feed Arm, L Tube, Wall Adapter and Fixing Kit
Retailer Information:
This product is sold in single boxes and is suitable for retail, the product has the following EAN bar code:
Dimensions & Weight of Singular Satellite Dish Box
Width: 30inches (76.2cm)
Height: 25inches (63.5cm)
Depth: 4inches (10.16cm)
Weight: 5KG
*To ensure safe delivery of this product, product must be purchased in quantities of 4 units*
Dimensions & Weight of Shipping Carton for 4 x Satellite Dishes
Width: 120inches (304.8cm)
Height: 100inches (254cm)
Depth: 16inches (40.64cm)
Weight: 20KG
