60cm Mesh Sat. Dish with Quad LNB/T for Sky & Free to Air
DB60L4T
Standard Shipping €6.99Nationwide Delivery Available
This Product Is Only Available For Delivery
Or Buy Now Pay Later
- Spread the cost of your purchase
Product Description

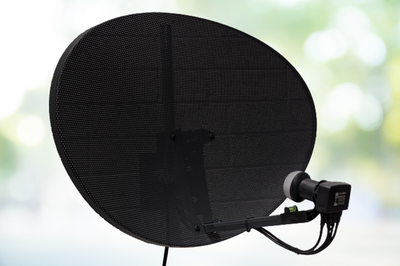

Providing you with Sky TV, Freesat and Free to Air applications, this satellite dish is the most widely used satellite dish in Ireland. This Satellite Dish comes with a Quad LNB with terrestrial input which can be used in conjunction with a terrestrial aerial to feed up to four combo set top boxes on a single cable.
The superior construction allows you to withstand harsh weather conditions while delivering a powerful signal strength.
The superior construction allows you to withstand harsh weather conditions while delivering a powerful signal strength.
Features:
Superior Manufacture & Design
 |
This satellite dish & Twin LNB are both designed with approved and certified materials to provide you with the most powerful signal strength. |
Outstanding Performance & Signal Gain
 |
This satellite dish is a Zone 2 - giving it a higher signal gain than zone 1 which allows for a better reception and exceptional performance. |
Compatibility
 |
Built and designed to withstand the harsh Irish weather, this satellite dish ensures a clear signal reception even during harsh weather environments. |
Multiroom Setups
 |
You can arrange up to 2 standard or a single Sky+ boxes from a dish which allows you to cut costs and unnecessary time. This means up to 2 rooms can be fed from the Twin LNB. |
HD Ready
 |
This satellite dish is HD ready, allowing you the freedom to enjoy crystal clear video and superior audio once assembly is complete. |
Assembly Instructions Included
 |
While installation of this satellite dish is not extremely demanding, it does take confidence. Instructions on installation are included with this purchase. |
Technical Information:

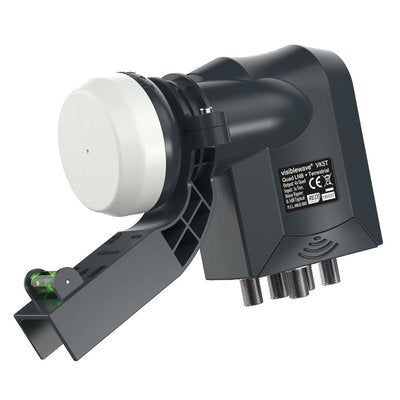

Quad LNB
- Input Frequency 10.7 ~ 12.75 GHz
high band: 11.7~12.75GHz
- Output frequency low band: 950~1950MHz
Output 1, 2, 3, 4 high band: 1100~2150MHz
- Output 1,2,3,4 VSWR Ratio 2.0:1 (typ.), 2.5:1 (max.)
(950 - 2150 MHz)
- L.O. Frequencies low band 9.75GHz (typ.)
high band 10.6GHz (typ.)
- L.O. Stability 0.5 ~1.0 MHz @ 25ºC
1.0 ~2.0 MHz @ -40ºC ~ 70ºC
- L.O. Phase Noise -65dBc/Hz @ 1kHz (typ.)
-83dBc/Hz @ 10kHz (typ.)
-95dBc/Hz @ 100kHz (typ.)
- LNB Gain LNB Gain 25dB @ -40ºC ~ 70ºC
- Ku LNBF Conversion Gain 55~67dB @ -40ºC~70ºC
- Gain Flatness Over Full Band 4dB P-P (max.)
- Gain Flatness @ 26MHz ±0.5dB P-P (typ.)
@ 300MHz ±2dB P-P (typ.)
- Noise Figure 0.3dB (typ.), 1.0dB (max.)
- Cross Polar Isolation 18 dB (min.)
- Image Rejection 40 dB (min)
- Current Consumption 200mA (typ.), 240mA (max.)
- Operating Voltage & Vertical 11.5~14 DC
Band Switching Horizontal 16~20VDC
Low-Band 0 KHz
High-Band 18~26KHz
- Operating Temp. -40ºC ~ +60ºC
- RED Compliance EN 303 372-1
Terrestrial
- Frequency Range 40 ~ 790 MHz
- Insertion Loss 8 ~1dB, 9dB (typ.)
Satellite Dish
- Weatherproof: Yes
- Surface: Mesh
- Shape: Oval
- Indoor/Outdoor: Outdoor
- Included Brackets: Satellite Bracket, Elevation Bracket, LNB Feed Arm, L Tube, Wall Adapter and Fixing Kit
Retailer Information:
This product is sold in single boxes and is suitable for retail, the product has the following EAN bar code:
Dimensions & Weight of Singular Satellite Dish Box
Width: 30inches (76.2cm)
Height: 25inches (63.5cm)
Depth: 4inches (10.16cm)
Weight: 5KG
