60cm Mesh Sat. Dish with Octo (8) LNB for Sky & Free to Air

DB60L8
60cm Mesh Sat. Dish with Octo (8) LNB for Sky & Free to Air
60cm Mesh Sat. Dish with Octo (8) LNB for Sky & Free to Air

ICPLUS

60cm Mesh Sat. Dish with Octo (8) LNB for Sky & Free to Air

DB60L8
In Stock
Home delivery
€99.99
Standard Shipping €6.99Nationwide Delivery Available
This Product Is Only Available For Delivery
Or Buy Now Pay Later - Spread the cost of your purchase
60cm Mesh Sat. Dish with Octo (8) LNB for Sky & Free to Air
Product Description
Providing you with Sky TV, Freesat and Free to Air applications, this satellite dish is the most widely used satellite dish in Ireland. This Satellite Dish with Octo LNB allows for eight feeds to be run from the dish to which can supply eight standard Free to Air / Standard Sky room installs or four Sky+, Sky+ HD or Freesat+ installs.

The superior construction allows you to withstand harsh weather conditions while delivering a powerful signal strength.

Features:



Superior Manufacture & Design


This satellite dish & Twin LNB are both designed with approved and certified materials to provide you with the most
powerful signal strength.














Outstanding Performance & Signal Gain


This satellite dish is a Zone 2 - giving it a higher signal gain than zone 1 which allows for a better reception and
exceptional performance.














Compatibility


Built and designed to withstand the harsh Irish weather, this satellite dish ensures a clear signal reception even
during harsh weather environments.














Multiroom Setups


You can arrange up to 2 standard or a single Sky+ boxes from a dish which allows you to cut costs and unnecessary time.
This means up to 2 rooms can be fed from the Twin LNB.














HD Ready


This satellite dish is HD ready, allowing you the freedom to enjoy crystal clear video and superior audio once assembly
is complete.














Assembly Instructions Included


While installation of this satellite dish is not extremely demanding, it does take confidence. Instructions on installation
are included with this purchase.













Technical Information:

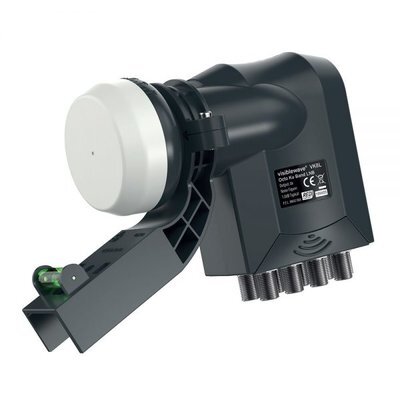

Octo LNB


  • Input Frequency                                     Low Band: 10.7~11.7GHz

                                                                             High Band: 11.7~12.75GHz


  • Feedhorn - Linear                                  Optimised for offset dish
  • Output Frequency                              Low Band: 950~1950MHz
                                                                             High Band: 1100~2150MHz

  • Output VSWR (950 - 2150MHz)        Ratio 2.0:1 (typ.), 2.5:1 (max.)

  • L.O. Stability                                        ±1.3MHz @ 25°C ~ ±2.5MHz @ -40~70°C

  • L.O. Phase Noise                                 @ 1kHz: -65dBc/Hz (typ.), -55dBc/Hz (max.)
                                                                         @ 10kHz: -85dBc/Hz (typ.), -75dBc/Hz (max.)

                                                                         @ 100kHz: -100dBc/Hz (typ.), -90dBc/Hz (max.)

  • Conversion Gain                                54~65dB @ 25ºC, 53~65dB @ -40ºC~70ºC

  • Gain Flatness Over Full Band        5dB P-P (typ.), 8dB P-P (tmax.)

  • Gain Flatness @ 26MHz                   ± 0.5dB P-P (typ.)± 0.75dB P-P (max.)

  • Gain Flatness Over 300MHz          ± 4dB P-P (typ.), ± 5.5dB P-P (max.)

  • Spurious Gain @ 1.7GHz                 48dB (typ.) -45dB (max.)

  • Cross Polar Isolation                        18dB (min.)20dB (typ.)

  • Image Rejection                              37dB (min), 40dB (typ.)

  • Current Consumption                    210mA (typ.), 360mA (max.) 12V

  • Connector Type                               75 female F-connector

  • Operating Temp                               -30'C ~ +70'C

  • RED Compliance                            EN 303 372-1

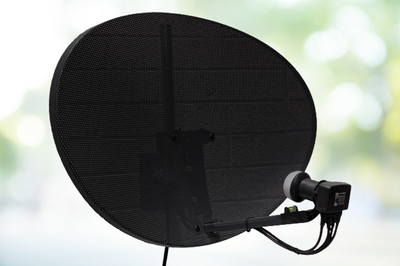

Satellite Dish

  • Weatherproof: Yes
  • Surface: Mesh
  • Shape: Oval
  • Indoor/Outdoor: Outdoor
  • Included Brackets: Satellite Bracket, Elevation Bracket, LNB Feed Arm, L Tube, Wall Adapter and Fixing Kit

Retailer Information:

This product is sold in single boxes and is suitable for retail, the product has the following EAN bar code:



Dimensions & Weight of Singular Satellite Dish Box
Width: 30inches (76.2cm)
Height: 25inches (63.5cm)
Depth: 4inches (10.16cm)
Weight: 5KG

*To ensure safe delivery of this product, product must be purchased in quantities of 4 units*

Dimensions & Weight of Shipping Carton for 4 x Satellite Dishes

Width: 120inches (304.8cm)
Height: 100inches (254cm)
Depth: 16inches (40.64cm)
Weight: 20KG
